R3c

Description

The perfect pair with R3
Cost-effective access solution: lower cost without compromisation
Extra security with R3c to anti passback: in & out both secured

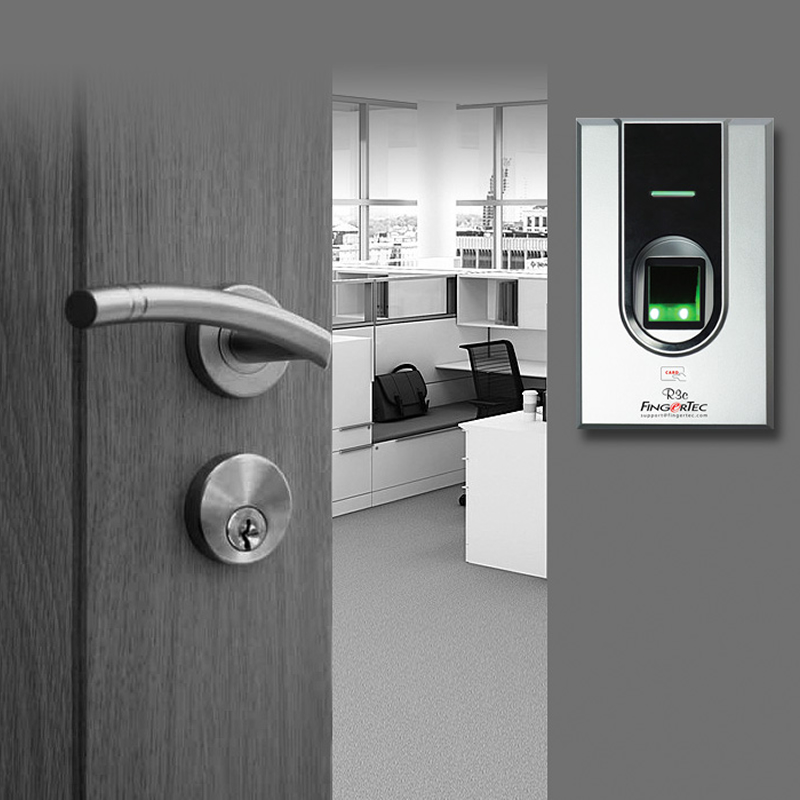

Design with access control in mind: fits perfectly in narrow spaces and door frames

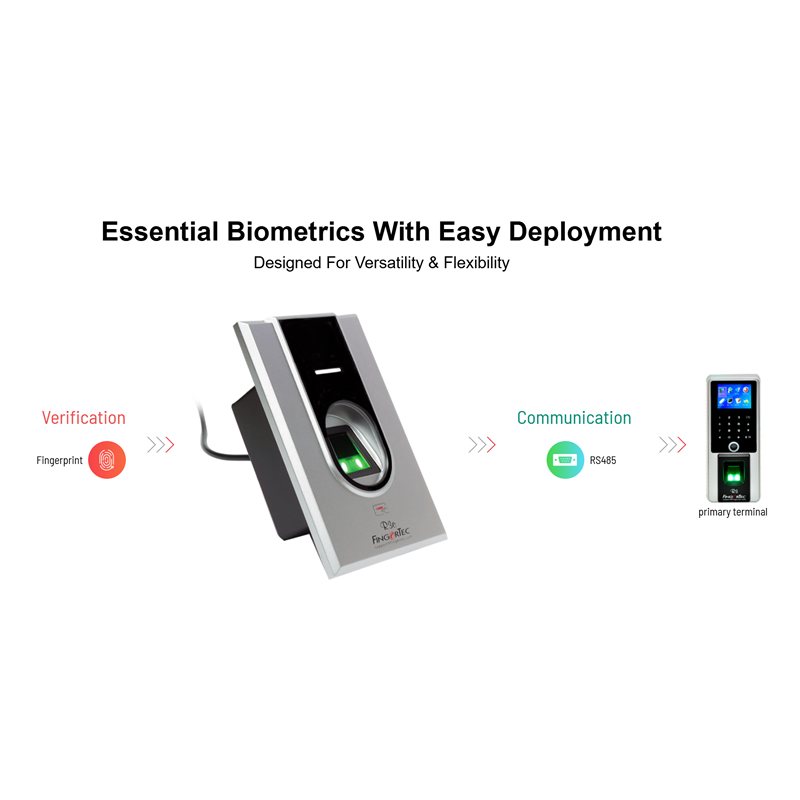

Access control management: All EM Lock driving outputs, alarm outputs, and anti-passback via the R3c can be diverted to be managed by a
primary terminal or Ingressus Controller in an access control system

SURFACE FINISHING	Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER	Non-coated optical scanner
PROCESSOR	Managed by primary
MEMORY	Managed by primary
ALGORITHM	Supports BioBridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm	80mm x 40mm x 125mm (w/o housing)
STORAGE	Fingerprint templates: Storage in primary Transaction logs: Storage in primary
ENROLLMENT & VERIFICATION	Methods: Fingerprint (1:N) Recommended fingerprint per user ID: Managed by primary Fingerprint placement: Any angle Verification time (sec): Managed by primary FAR (%): Managed by primary FRR (%): Managed by primary
COMMUNICATIONS	Method: RS485 (Connects to Primary)
OPERATING ENVIRONMENT	Temperature (°C): 0 ~ 45 Humidity (%): 20 ~ 80 Power input: Managed by primary
ACCESS CONTROL	EM lock driving output: Managed by primary Alarm output: Managed by primary Anti-passback: YManaged by primary
